Monitor Sony LMD-2450MD

With Sony Advanced Image Processing Technology, the LMD-2450MD Reproduces Accurate High-Definition Images for Critical Endoscopic Applications

Sony introduces an exceptional High Definition 24-inch*1 medical monitor – the LMD-2450MD.
This monitor incorporates a superb-quality WUXGA (1920 x 1200) panel, delivering extremely high levels of brightness and high-contrast images to the surgical theater. In addition, the LMD-2450MD accepts almost any SD and HD video signal in both analog and digital, allowing doctors to view images from multiple sources. For accurate image reproduction, the LMD-2450MD incorporates advanced Sony ChromaTRU color processing technology, providing consistent color images across multiple monitors.

What’s more, the LMD-2450MD complies with the 100-mm VESA mounting standard so it can be attached to a surgical mount arm, making it ideal for use in operating theaters. With other convenient features such as Flexible Display Modes, Selectable Gamma Curves, and a Key-inhibit function, the LMD-2450MD is an ideal choice for surgical endoscopy applications.

*1 Viewable area measured diagonally.

Safety Listing and Compliance

The LMD-2450MD monitor is UL60601-1 listed and complies with CSA C 22.2 No. 60601 and EN60 601-1 safety regulations, making it suitable for use in professional medical applications.

Excellent Picture Reproduction

ChromaTRU Color Processing

For an extra level of color reproduction accuracy, every LCD panel used in the LMD-2450MD is precisely color calibrated at the factory, providing consistent characteristics. The colorimetry of an LCD display, by nature, can exhibit inaccurate color characteristics and gamma curves, which can make precise color matching between multiple monitors a challenge. The LMD-2450MD solves this problem by precisely calibrating each LCD panel’s light output so that the R, G, B color coordinates are consistent for every monitor. A second calibration is further applied so that white balance is maintained at a consistent color temperature throughout all grayscale levels. This technology is invaluable for applications such as simultaneous monitoring in operating rooms and monitoring rooms.

Excellent Brightness and Contrast
(WUXGA Panel)
The LMD-2450MD provides high-brightness and high contrast images by utilizing super-wide aperture WUXGA LCD panels.

Natural Gradation and Accurate Color Reproduction (10-Bit DSP)
The LMD-2450MD adopts an advanced full 10-bit digital video signal processor to produce accurate, lifelike images with smooth and natural gradation.

Sophisticated I/P (Interlace to Progressive) Conversion
The LMD-2450MD uses an advanced technology to perform sophisticated I/P conversion. This method combines the pixels above, below, and in the diagonal direction of the image in areas where there is movement, and then inserts a natural pixel to create the absent lines. The result is very smooth image reproduction for both moving and static picture areas.

FEATURES

Input Versatility

(Multi-format Signal Support)

The LMD-2450MD monitor can accept almost any signal ranging from SD to HD video, as well as PC signals via its DVI-D or HD15 connectors. In addition to its standard inputs, four different optional input adapters are offered for use in its expansion slot.
This flexibility allows images from a variety of medical equipment sources, including endoscopes, to be monitored. The LMD-2450MD also provides parallel and serial control (including via Ethernet) as standard.

Operational Convenience

Gamma Curve Selection

Users can choose from two gamma curves, DICOM or CRT 2.2, whichever is more appropriate for the image being monitored.

Multiple Display Modes

The LMD-2450MD incorporates multiple display modes such as Picture-in-Picture, and Picture-and- Picture (including a side-by-side split screen). These flexible display modes can be used for special applications such as to view both live video and captured images simultaneously for more comprehensive coverage of the surgical procedure.

Picture-in-Picture

Picture-and-Picture (side-by-side split screen)

Selectable Scan Size/Aspect Ratio

Either a 20% overscan mode or a 0% scan mode can be selected. Also, the aspect ratio can be set to either 16:9 or 4:3 to match the input signal.

Protected Controls

The key-inhibit function helps prevent inadvertent operation from the control panel.

Mounting Flexibility (VESA)

The LMD-2450MD complies with the 100-mm hole spacing VESA mounting standard making it ideal for use with surgical equipment arms.

Input Signals

*2 Available with component input only

HD15 Input Signal Format

*3 Also compatible with 1/1.001 frame rates

N = Negative

P = Positive

SPECIFICATIONS

OPTIONAL ACCESSORIES

Picture Performance

LCD Panel Type Resolution

Effective Picture Size (W x H) Aspect
Colors

Viewing Angle

Input / Output

a-Si TFT Active Matrix
WUXGA (1920 X 1200)
Approx. 518 x 324 mm (20 1/2 x 12 7/8 inches) Diagonal 609 mm (24 inches)
16:10
Approx. 16,770,000 colors (8-bit) 89°/89°/89°/89° (typical)
(up/down/left/right contrast > 10:1)

BNC (x 1), 1.0 Vp-p ±3dB, sync negative
4pin Mini DIN (x 1)
Y: 1.0 Vp-p ±3dB, sync negative
C: 0.286 Vp-p ±3dB (NTSC), 0.3 Vp-p ±3dB (PAL) BNC (x 3)

Component: 0.7 Vp-p ±3dB
(75% chrominance standard color bar signal)
RGB: 0.7 Vp-p ±3dB
(Sync On Green, 0.3 Vp-p, sync negative)
BNC (x 1)
0.3 to 4.0 Vp-p ±bipolarity ternary or negative polarity binary
DVI-D (x 1): TMDS single link
D-sub 15pin (x 1)
0.7 Vp-p, sync positive
(Sync On Green, 0.3 Vp-p, sync negative)
Sync: TTL level (polarity free, H/V separate sync)
Plug & Play function: corresponds to DDC-2B
1 slot
Signal format: H 15 to 45 kHz, V 48 to 60 Hz
DC 5 V/24 V (output impedance 0.05 Ω or less) Modular 8-pin (x 1)
D-sub 9-pin (RS-232C) (x 1)
RJ-45 modular (ETHERNET) (x 1)
BNC (x 1), Loop-through, 75 Ω automatic termination 4-pin mini-DIN (x 1), Loop-through,
75 Ω automatic termination
BNC (x 3), Loop-through, 75 Ω automatic termination BNC (x 1), Loop-through, 75 Ω automatic termination

Maximum: Approx. 115 W (with 2 x BKM-229X) AC 100 to 240 V, 50/60 Hz, 1.2~0.6 A,
DC 24 V 3.5 A, 5 V 0.030 A
0 to 35 °C (32 to 95 °F),

Recommended: 20 to 30 °C (68 to 86 °F) 30 to 85 % (no condensation) -20to60°C(-4to140°F) 0to90%(nocondensation)

700 to 1060 hPa

Approx. 602 x 386 x 110 mm
(23 3/4 x 15 1/4 x 4 3/8 inches)
(including projections)
Approx 10 kg (22 lb) (without optional board)

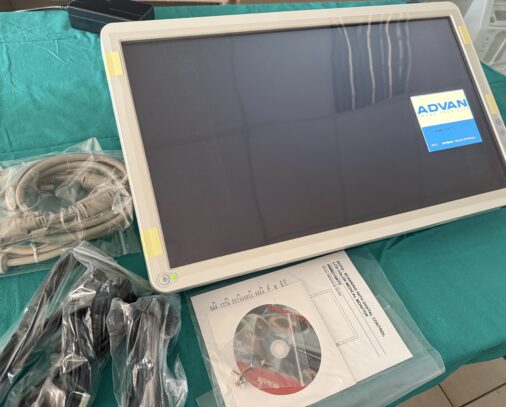

AC adaptor, AC power cord, AC plug holder, Instructions for Use, CD-ROM (Operating instructions), Using the CD-ROM manual, Quick Reference, When You First Use The Monitor booklet, Sales Company Guide, Warranty card

BKM-220D BKM-243HS*4 BKM-227W BKM-229X SU-560

SD-SDI 4:2:2 Input Adaptor HD-SDI/SD-SDI Input Adaptor NTSC/PAL Input Adaptor Analog Component Adaptor Monitor Stand

*4 The LMD-2450MD is equipped with all inputs on the BKM-243HS as standard.

Input

Composite Y/C

Component/RGB

Ext. Sync

Computer HD15

Optional

DC IN Parallel Serial

Composite Y/C

Component/RGB Ext. Sync

DIMENSIONS

602.4 (23 3/4)

273.5 (10 7/8) M4

100 (4)

110 (4 3/8)

302 (12)

Unit: mm (inches)

Remote

Output

General

100 (4)

FRONT PANEL

Tally lamp Power indicator

(key inhibit) indicator

CONTROL button

100 (4)

Power Consumption Power Requirements

Operating Temperature

Operating Humidity Storage&TransportTemperature Storage&TransportHumidity Operating, Storage, and Transport Pressure Dimensions (W x H x D)

Mass
Supplied accessories

Distributed by

CONTRAST buttons
PHASE buttons
CHROMA buttons
BRIGHT (brightness) buttons

Menu operation buttons Input select buttons Function buttons MEMORY button

MK10430V1IW07JUL

CONNECTOR PANEL

DC 5V/24 IN connector (Equipotential/Ground) terminal

COMPOSITE IN connector (BNC) Y/C IN connector (4-pin mini-DIN) G/Y IN connector (BNC)
B/PB IN connector (BNC)

R/PR IN connector (BNC)
EXT SYNC IN/OUT (external sync) connectors (BNC)
Loop-through output connectors

(power) switch Optional input slot

PARALLEL REMOTE connector (modular connector, 8-pin)
SERIAL REMOTE connector (RJ-45) SERIAL REMOTE RS-232C connector (D-sub 9-pin, female)

DVI-D input connector (DVI-D)
HD15 input connector (D-sub 15-pin, female)

/
